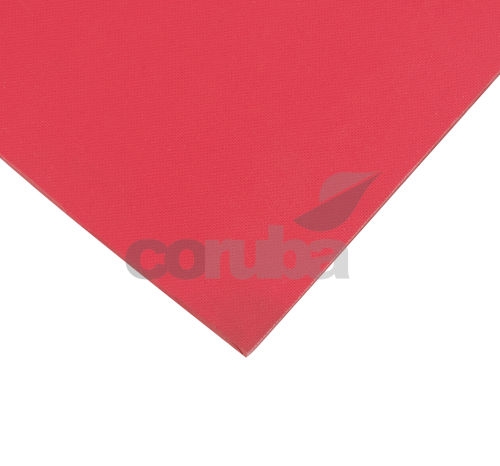

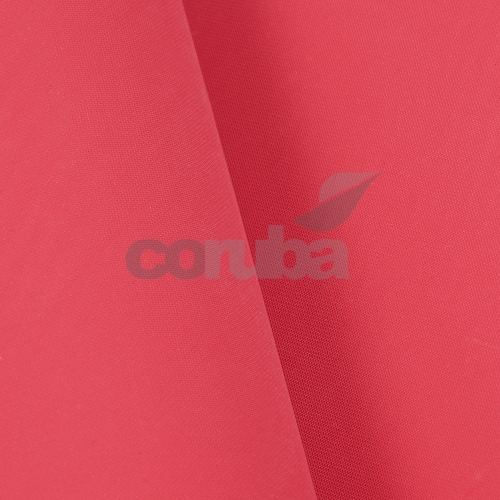

Red High Abrasive Resistant Natural Rubber

Free delivery on orders over £1200.00, all other orders have a fixed rate of £20.00 + VAT.
*Terms and conditions apply

If you would like to discuss this product, or you require a sample, please call 01702 560194. Alternatively, you can use our contact form.

Please note: All cut material is non-returnable unless faulty as these are non-sellable and have been cut to specific requirements.

Download Red High Abrasive Resistant Natural Rubber Datasheet

Red High Abrasive Resistant Natural Rubber

SKU: Coru154

REACH, RoHS, PAH and CE compliant
High wear and abrasion resistance
N.B. Available in plain or self-adhesive backed tape (SAB) alternatives
Red – RAL 3027

Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk

From £88.09 Incl. VATFrom £73.41 Excl. VAT

Thickness
Width
Length	Clear

This product is available for bespoke manufacturing, please choose an option below:

Material Profile (see below):

Thickness: 1.5mm to 25mm
Sheet Size: 1.4m wide in 10m rolls
Cutting: Standard press-tools

Reviews

PROPERTIES	TEST METHOD	VALUES FPS UNITS	TEST METHOD	VALUES METRIC UNITS
SPECIFIC GRAVITY	DIN 53508	1.05 +- 0.05	ASTM D297	1.05 +- 0.05
HARDNESS	DIN 53505	38 +- 5 SH A	ASTM D2240	38 +- 5 SH A
TENSILE STRENGTH ( MIN )	DIN 53504	2702 PSI	ASTM D412	190 KG/CM2
ELONGATION AT BREAK ( MIN )	DIN 53504	500%	ASTM D412	500%
COMPRESSION SET (70ºC/24 HRS/25% SET) (MAX)	DIN 53517	30%	ASTM D395 METHOD B	30%
TEAR RESISTANCE (ANGULAR) MIN	DIN 53515	190 LBS/INCH	ASTM D624	45 KG/CM
ABRASION RESISTANCE (MAX)	DIN 53516	88mm3	ASTM D5963	88mm3
CHANGE IN PROPERTIES AFTER
HEAT AGEING ( 72 HRS. AT 70 °C )			ASTM D573
— HARDNESS (PTS)		+ 5 (MAX)		+ 5 (MAX)
— TENSILE STRENGTH (%)		+ 10 / – 15		+ 10 / – 15
— ELONGATION AT BREAK (%)		+ 10 / – 25		+ 10 / – 25
VOLUME SWELL : AT 70ºC FOR 72 HRS/IN			ASTM D 471
IRM OIL NO.1		NOT RECOMMENDED		NOT RECOMMENDED
IRM OIL NO.2		NOT RECOMMENDED		NOT RECOMMENDED
IRM OIL NO.3		NOT RECOMMENDED		NOT RECOMMENDED
CHEMICAL RESISTANCE
— OZONE		FAIR	ASTM D1149	FAIR
— DILUTE ACIDS AND BASES		NOT RECOMMENDED		NOT RECOMMENDED
— CONCENTRATED ACIDS AND BASES		NOT RECOMMENDED		NOT RECOMMENDED
— OILS		NOT RECOMMENDED		NOT RECOMMENDED
— SOLVENTS		NOT RECOMMENDED		NOT RECOMMENDED
TEMPERATURE RANGE		-40° TO + 80°C		-40° TO + 80°C
COLOUR		RED – RAL 3027

PROPERTIES	TEST METHOD	VALUES FPS UNITS	TEST METHOD	VALUES METRIC UNITS
SPECIFIC GRAVITY	DIN 53508	1.05 +- 0.05	ASTM D297	1.05 +- 0.05
HARDNESS	DIN 53505	38 +- 5 SH A	ASTM D2240	38 +- 5 SH A
TENSILE STRENGTH ( MIN )	DIN 53504	2702 PSI	ASTM D412	190 KG/CM2
ELONGATION AT BREAK ( MIN )	DIN 53504	500%	ASTM D412	500%
COMPRESSION SET (70ºC/24 HRS/25% SET) (MAX)	DIN 53517	30%	ASTM D395 METHOD B	30%
TEAR RESISTANCE (ANGULAR) MIN	DIN 53515	190 LBS/INCH	ASTM D624	45 KG/CM
ABRASION RESISTANCE (MAX)	DIN 53516	88mm3	ASTM D5963	88mm3
CHANGE IN PROPERTIES AFTER
HEAT AGEING ( 72 HRS. AT 70 °C )			ASTM D573
— HARDNESS (PTS)		+ 5 (MAX)		+ 5 (MAX)
— TENSILE STRENGTH (%)		+ 10 / – 15		+ 10 / – 15
— ELONGATION AT BREAK (%)		+ 10 / – 25		+ 10 / – 25
VOLUME SWELL : AT 70ºC FOR 72 HRS/IN			ASTM D 471
IRM OIL NO.1		NOT RECOMMENDED		NOT RECOMMENDED
IRM OIL NO.2		NOT RECOMMENDED		NOT RECOMMENDED
IRM OIL NO.3		NOT RECOMMENDED		NOT RECOMMENDED
CHEMICAL RESISTANCE
— OZONE		FAIR	ASTM D1149	FAIR
— DILUTE ACIDS AND BASES		NOT RECOMMENDED		NOT RECOMMENDED
— CONCENTRATED ACIDS AND BASES		NOT RECOMMENDED		NOT RECOMMENDED
— OILS		NOT RECOMMENDED		NOT RECOMMENDED
— SOLVENTS		NOT RECOMMENDED		NOT RECOMMENDED
TEMPERATURE RANGE		-40° TO + 80°C		-40° TO + 80°C
COLOUR		RED – RAL 3027
