Red Silicone Food & Drink Grade 60° Shore

Translucent FDA Approved & EU1935/2004 Compliant Silicone 60° Shore

Free delivery on orders over £1200.00, all other orders have a fixed rate of £20.00 + VAT.
*Terms and conditions apply

If you would like to discuss this product, or you require a sample, please call 01702 560194. Alternatively, you can use our contact form.

Please note: All cut material is non-returnable unless faulty as these are non-sellable and have been cut to specific requirements.

Download Red FDA Approved & EU1935/2004 Compliant Silicone 60° Shore Datasheet

Red FDA Approved & EU1935/2004 Compliant Silicone 60° Shore

SKU: Coru14004

View Chemical Resistances

Approved to FDA 21 CFR No: 177 – 2600, EU1935/2004 regulations and class V1 compliant
REACH, RoHS, PAH and CE compliant
High Quality Silicone: 60° Shore
Red – RAL 3016

From £44.06 Incl. VATFrom £36.72 Excl. VAT

Thickness
Width
Length	Clear

This product is available for bespoke manufacturing, please choose an option below:

Gaskets

Strips

Cut Parts

Chemical Resistances

Acetic Acid, AdBlue, Brine, Calcium Chloride, Carbon Dioxide, Carbon Monoxide, Carbonic Acid, Sodium Hydroxide, Citric Acid, Formaldehyde, Glucose, Hydrogen Gas, Hydrogen Peroxide, Hydrogen Sulphide, Lime, Methyl Alcohol, Methanol, Neon Gas, Nitrogen, Ozone, Phosphoric Acid, Potassium Carbonate, Sea Water, Sewage, Sodium Peroxide, Steam, Transformer Oil, Urea, Vegetable Oil, Vinegar

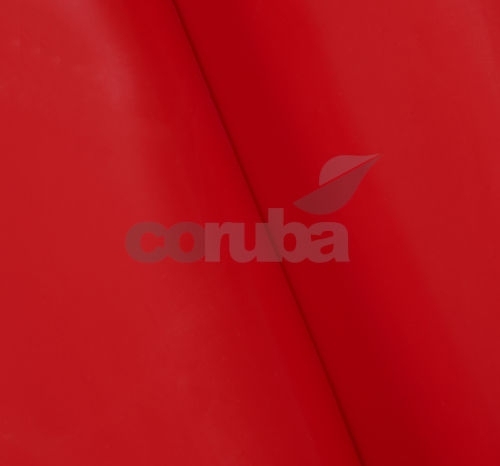

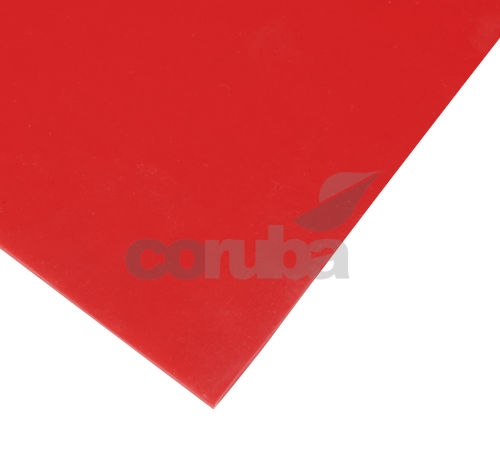

Coru14004 Red Silicone Food & Drink Grade 60° shore is high quality sheeting for demanding applications with excellent heat and flame resistance together with very good aging and weathering characteristics and suitable for use with food and drink.

N.B. Available in plain or self-adhesive backed tape (SAB) alternatives. Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk.

Complies to US FDA 21 CFR177.2600. & EU 1935/2004 and USP Class VI Compliant.

Material Profile (see below):

Thickness: 1.0mm to 6mm
Sheet Size: 1.2m wide in 10m rolls
Finish: Smooth finish,
Cutting: Standard press-tools

Other grades, colours and finishes are available – subject to minimum batch quantities.

This Product is REACH, RoHS, PAH and CE Compliant.

Reviews

PROPERTIES	TEST METHOD	VALUES FPS UNITS	TEST METHOD	VALUES METRIC UNITS
SPECIFIC GRAVITY	ASTM D297	1.20	DIN 53508	1.20
HARDNESS	ASTM D2240	60 ± 5 SH A	DIN 53505	60 ± 5 SH A
TENSILE STRENGTH (MIN)	ASTM D412	712 PSI	DIN 53504	60 KG/CM²
ELONGATION AT BREAK (MIN)	ASTM D412	250%	DIN 53504	250%
COMPRESSION SET (70º C/24 HRS/25% SET) (MAX)	ASTM D395 METHOD B	40%	DIN 53517	40%
TEAR RESISTANCE (ANGULAR) MIN	ASTM D624	112 LBS/INCH	DIN 53515	20 KG/CM
POLYMER CONTENT:		100		100
CHANGE IN PROPERTIES
HEAT AGEING (72 HRS. AT 100 ºC)	ASTM D573
— HARDNESS (PTS)		+3 (MAX)		+3 (MAX)
— TENSILE STRENGTH (%)		+ 5 / – 5		+ 5 / – 5
— ELONGATION AT BREAK (%)		+ 5 / – 5		+ 5 / – 5
VOLUME SWELL: AT 70º C FOR 72 HRS/IN	ASTM D 471
ASTM OIL NO.1		+ 5%		+ 5%
ASTN OIL NO.2		+ 7%		+ 7%
ASTM OIL NO.3		+ 25%		+ 25%
CHEMICAL RESISTANCE
— OZONE	ASTM D 1149	EXCELLENT		EXCELLENT
— DILUTE ACIDS AND BASES		EXCELLENT		EXCELLENT
— CONCENTRATED ACIDS AND BASES		EXCELLENT		EXCELLENT
— OILS		GOOD		GOOD
—SOLVENTS		FAIR		FAIR
TEMPERATURE RANGE		-90 º TO + 200º C		-90 º TO + 200º C
COLOUR		RED – RAL 3016		RED – RAL 3016

SR. NO.	NET CHLOROFORM SOLUBLE EXTRACTIVES USING	RESULT	UNIT	LIMITS AS PER STANDARD	TEST METHOD
Total Extractives at Reflux Temperatures for 7 hrs. Using
1	Distilled Water	2.8	mg/inch²	20.0	As per USFDA 21.CFR.176.2600
2	n-Hexane	22.4	mg/inch²	175.0	As per USFDA 21.CFR.176.2600
Total Extractives at Reflux Temperatures for 2 hrs. Using
3	Distilled water	0.8	mg/inch²	1.0
4	n-Hexane	0.8	mg/inch²	4.0

Note: Detection Limit for the method is 0.5 mg/inch2.

PROPERTIES	TEST METHOD	VALUES FPS UNITS	TEST METHOD	VALUES METRIC UNITS
SPECIFIC GRAVITY	ASTM D297	1.20	DIN 53508	1.20
HARDNESS	ASTM D2240	60 ± 5 SH A	DIN 53505	60 ± 5 SH A
TENSILE STRENGTH (MIN)	ASTM D412	712 PSI	DIN 53504	60 KG/CM²
ELONGATION AT BREAK (MIN)	ASTM D412	250%	DIN 53504	250%
COMPRESSION SET (70º C/24 HRS/25% SET) (MAX)	ASTM D395 METHOD B	40%	DIN 53517	40%
TEAR RESISTANCE (ANGULAR) MIN	ASTM D624	112 LBS/INCH	DIN 53515	20 KG/CM
POLYMER CONTENT:		100		100
CHANGE IN PROPERTIES
HEAT AGEING (72 HRS. AT 100 ºC)	ASTM D573
— HARDNESS (PTS)		+3 (MAX)		+3 (MAX)
— TENSILE STRENGTH (%)		+ 5 / – 5		+ 5 / – 5
— ELONGATION AT BREAK (%)		+ 5 / – 5		+ 5 / – 5
VOLUME SWELL: AT 70º C FOR 72 HRS/IN	ASTM D 471
ASTM OIL NO.1		+ 5%		+ 5%
ASTN OIL NO.2		+ 7%		+ 7%
ASTM OIL NO.3		+ 25%		+ 25%
CHEMICAL RESISTANCE
— OZONE	ASTM D 1149	EXCELLENT		EXCELLENT
— DILUTE ACIDS AND BASES		EXCELLENT		EXCELLENT
— CONCENTRATED ACIDS AND BASES		EXCELLENT		EXCELLENT
— OILS		GOOD		GOOD
—SOLVENTS		FAIR		FAIR
TEMPERATURE RANGE		-90 º TO + 200º C		-90 º TO + 200º C
COLOUR		RED – RAL 3016		RED – RAL 3016

SR. NO.	NET CHLOROFORM SOLUBLE EXTRACTIVES USING	RESULT	UNIT	LIMITS AS PER STANDARD	TEST METHOD
Total Extractives at Reflux Temperatures for 7 hrs. Using
1	Distilled Water	2.8	mg/inch²	20.0	As per USFDA 21.CFR.176.2600
2	n-Hexane	22.4	mg/inch²	175.0	As per USFDA 21.CFR.176.2600
Total Extractives at Reflux Temperatures for 2 hrs. Using
3	Distilled water	0.8	mg/inch²	1.0
4	n-Hexane	0.8	mg/inch²	4.0

Note: Detection Limit for the method is 0.5 mg/inch2.
