CoruFlex Firing Range/Target Backing Rubber Sheeting
- REACH, RoHS, PAH and CE compliant
- Custom lengths available
- Reduces ricochet and back splatter
- Reduces noise and lead pollution
- Shock absorbent
- Custom colours manufactured to order
From £55.20 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
The CoruFlex Firing Range/Target Backing Rubber Sheeting is a specially formulated natural rubber. Providing a strong physical strength, it enables the rubber to self heal, withstanding thousands of rounds in a small area.
CoruFlex target backing curtain reduces ricochet and back splatter. It is hangs freely along the bullet trap and the bottom is not fixed.
Venetian blind is made of steel and armor steel impact plates that are fixed at a downward angle to direct the bullets to the deceleration chamber. Due to the steel structure, it is necessary to use a safety curtain to prevent all the possible ricochets and back splatter.

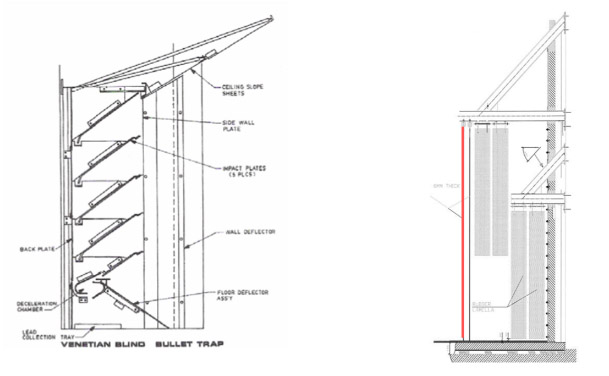

Soft Bullet Trap (SBT) is an environmentally friendly design that features in most shooting ranges. It is a combination of rubber lamellas, a rubber target backing and steel plate backing. The rubber lamellas reduce the velocity of the bullets and maintain the bullets shape, leaving a lower impact noise and reduced lead dust. The illustrations below show 2 typical bullet trap designs and the position of the CoruFlex target backing curtains.
N.B. Available in plain or self-adhesive backed tape (SAB) alternatives. Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk.
Material Profile (see below):
- Thickness: 1.5mm to 25mm
- Sheet Size: 1.4m wide in 10m rolls
- Finish: Cloth finish
- Cutting: Standard press-tools
Other grades, colours and finishes are available – subject to minimum batch quantities.
| Storage
Refer to ISO 2230 – guide to storage of vulcanized rubber. Limitations Not suitable for application where the product will come into contact with oils, greases and strong oxidizing agents. Physical Properties Color: Red |
Arms and Ammo
Suitable for handguns (revolver and pistol), rifles and sub-machine guns, including ammunition of any caliber with muzzle velocity up to 2300m/sec. Warning Coruflex® is not bullet proof material. It is for anti-ricochet and back splatter only. Regular inspection and proper maintenance is necessary. Hollow point, wad cutter, semi-wad cutter or similar types of bullets are not Do not use shot guns, low charge or air rifles. Curtain should hang freely, do not fix at bottom. Each curtain should overlap min. 100mm to each other. |
|
PROPERTIES |
TEST METHOD |
VALUES FPS UNITS |
TEST METHOD |
VALUES METRIC UNITS |
|
SPECIFIC GRAVITY |
DIN 53508 |
0.98+0.05 |
ASTM D297 |
0.98+0.05 |
|
HARDNESS |
DIN 53505 |
38± 5 SH A |
ASTM D2240 |
38± 5 SH A |
|
TENSILE STRENGTH ( MIN ) |
DIN 53504 |
3415 PSI |
ASTM D412 |
240 KG/CM2 |
|
ELONGATION AT BREAK ( MIN ) |
DIN 53504 |
810% |
ASTM D412 |
810% |
|
ABRASION RESISTANCE ( MAX ) |
DIN 53516 |
80 MM3 |
ASTM D5963 |
80 MM3 |
|
COMPRESSION SET (70°C/24HRS/25% COMPRESSION) ( MAX ) |
DIN 53517 |
20% |
ASTM D395 METHOD B |
20% |
|
TEAR RESISTANCE ( ANGULAR ) MIN |
DIN 53515 |
224 LBS/INCH |
ASTM D624 |
40 KG/CM |
|
RESILIENCE |
|
75% |
|
75% |
|
CHANGE IN PROPERTIES AFTER |
|
|
|
|
|
HEAT AGEING FOR ( 72 HRS. AT 70°C) |
|
|
ASTM D573 |
|
|
— HARDNESS ( PTS ) |
|
+ 3 (MAX) |
|
+ 3 (MAX) |
|
— TENSILE STRENGTH ( % ) |
|
+10 / -15 |
|
+10 / -15 |
|
— ELONGATION AT BREAK ( % ) |
|
+10 / -15 |
|
+10 / -15 |
|
VOLUME SWELL : AT 70°C FOR 72 HRS |
|
|
ASTM D 471 |
|
|
IN IRM OIL NO.1 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
IN IRM OIL NO.2 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
IN IRM OIL NO.3 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
CHEMICAL RESISTANCE |
|
|
|
|
|
— OZONE |
|
FAIR |
ASTM D 1149 |
FAIR |
|
— DILUTE ACIDS AND BASES |
|
GOOD |
|
GOOD |
|
— CONCENTRATED ACIDS AND BASES |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
— OILS |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
— SOLVENTS |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
TEMPERATURE RANGE |
|
-30 to +70oC |
||
|
COLOUR |
|
RED |
||
|
