Fine Ribbed Rubber Matting to ASTM D178 Type 1 Class 4
- REACH RoHS, PAH and CE Compliant
- PAH compliant means Odour free unlike cheaper grades
- Health & Safety regulation material
- Anti-slip finish
From £104.51 Excl. VAT
You save (%)
This product is available for bespoke manufacturing, please choose an option below:
Coruba are proud distributors of METROSEAL SM555.
SM555 Fine Ribbed Rubber Matting to ASTM D178 Type 1, Class 4, is a high quality electrical safety matting fully tested to 30,000 volts with regulation standard stamped on reverse of roll at 1000mm intervals.
- Dielectric test voltage: 50,000 volts
- Surface proof tested: 40,000v
- maximum safety working voltage of 36,000v

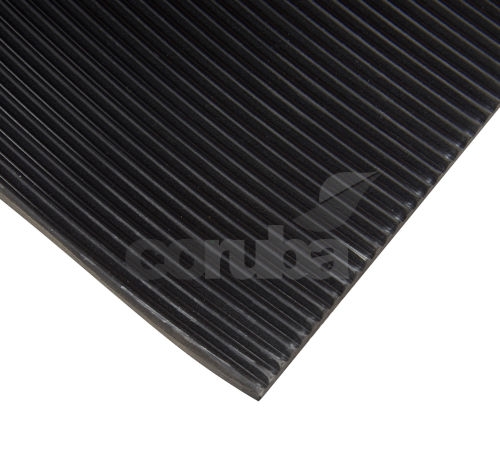

It has a fine ribbed, anti-slip surface pattern on one side and a cloth impression finish on the reverse.
- Fully tested to specification
- Fully traceable supply
- Regulatory branding on reverse
- Low maintenance
- THIS GRADE DOES NOT CONTAIN RECYCLED RUBBER
Cut lengths available to order. Coru555 can also be supplied to order in colours and flame retardant, low smoke emission grades.
|
Properties |
Values |
|
Colour |
Black |
|
Polymer |
NR |
|
Density (Specific Gravity) |
1.50 |
|
Hardness oShore A |
70±5 |
|
Tensile Strength kg/cm2 |
40.0 |
|
Elongation at Break |
200% |
|
Temperature Resistance, MAX |
-20 to +70oC |
|
Abrasion Resistance |
180mm3 |
|
Tested Voltage |
50kv |
|
Standard |
ASTM |
|
Properties |
Values |
|
Colour |
Black |
|
Polymer |
NR |
|
Density (Specific Gravity) |
1.50 |
|
Hardness oShore A |
70±5 |
|
Tensile Strength kg/cm2 |
40.0 |
|
Elongation at Break |
200% |
|
Temperature Resistance, MAX |
-20 to +70oC |
|
Abrasion Resistance |
180mm3 |
|
Tested Voltage |
50kv |
|
Standard |
ASTM |
