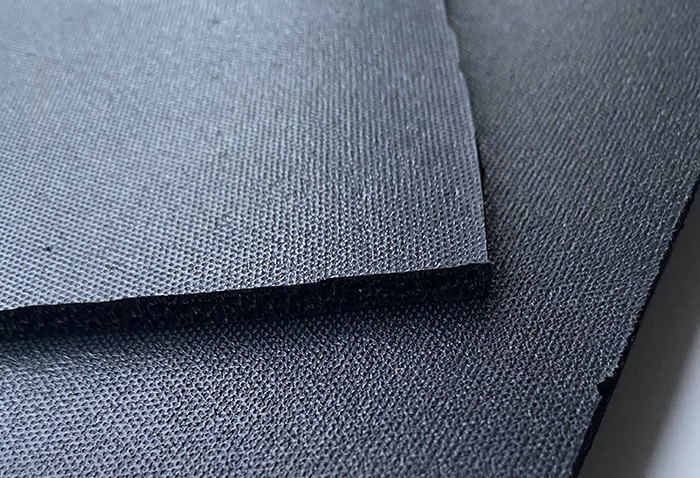

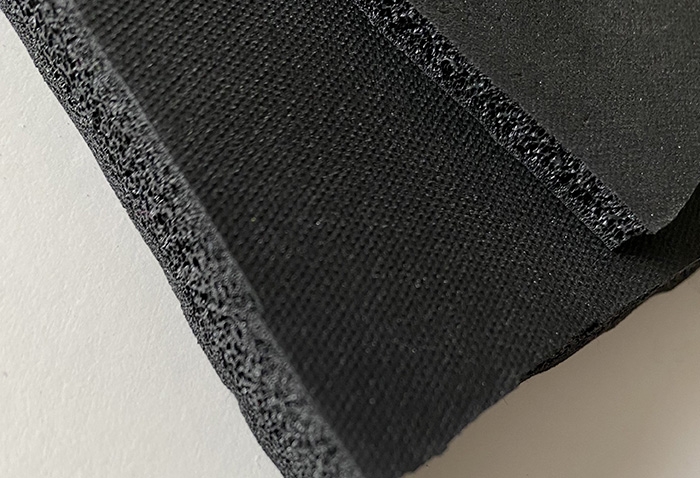

ER94 Open Cell 100% EPDM Sponge Sheet
- Open cell sponge
- Excellent UV ageing & ozone resistance
- Supplied with or without adhesive backing
- Additional thicknesses available, please contact us: 3mm, 6mm, 10mm, 15mm, 20mm
From £220.50 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
EPDM (100%) Rubber Open Cell Sponge, has properties that make it useful in many applications. ER94 EPDM open cell structure gives it excellent recovery properties, or compression set resistance, making it a great choice for die ejection applications, cushioning, and vibration absorption. ER94 EPDM open cell is also used as an expansion joint material and has very good non-skid properties making it a common choice for mousepads, office supplies, and marketing displays.
EPDM compared against Natural Open Cell offers benefits including excellent UV, ageing and ozone resistance along with higher temperature rating of +135C.
ER94 EPDM open cell can be supplied with or without adhesive backing in full rolls or slit rolls. Coruba can die or waterjet cut parts to your exact specifications.
|
Properties |
Values |
|
Colour |
Black |
|
Compound |
100 % EPDM |
|
Density [Specific Gravity] (g/Cm3) |
0.35-0.4 |
|
Hardness [Shore C] to ISO48-2010 |
30 +/-5 |
|
Tensile Strength [MPA] to ISO 37-2011 |
>0.5 |
|
Elongation at Break % to ISO 37-2011 |
>200 |
|
High Temperature Reach |
+135oC |
|
Cell Structure |
Open Cell |
|
