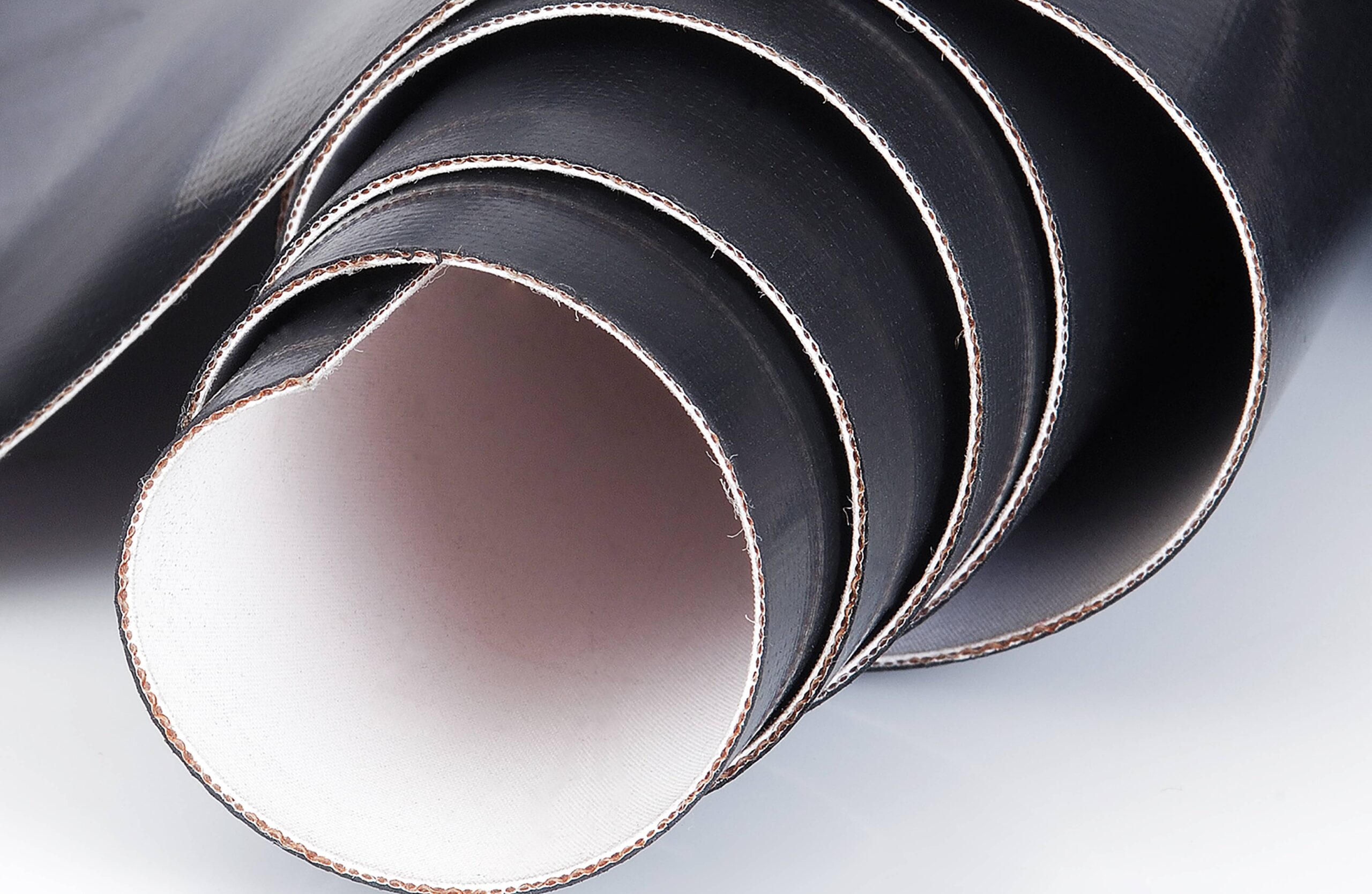

Diaphragm Fabric
SKU: CCF-Diaphragm
- This has anti capillary quality which is used for Diaphragm Valve’s Application
- It can be easily used at 125°c temperature
- It is good Oil & solvent resistance
- It is used for brake valves as insertion fabric
Call for Price
This product is available for bespoke manufacturing, please choose an option below:
Technical Information
| SPECIFICATION | |
| Insertion Fabric | Nylon 66 Fabric |
| Polymer | Nitrile (NBR) / Nitrile (NBR) |
| Colour | Green / Green |
| Breaking Strength | Warp- 300 kgs, Weft- 300 kgs, Warp- 660 lbs, Weft- 660 lbs |
| Min. Thickness | 0.75 mm ± 0.05 mm, 0.03 inch ± 0.002” |
| Width Available | 1.0 Mtr (39.37”) to 2.0 Mtr (78.74”) |
| Coated Fabric Weight | 900 gsm (± 5%), 26.46 oz/yd2 (± 5%) |
