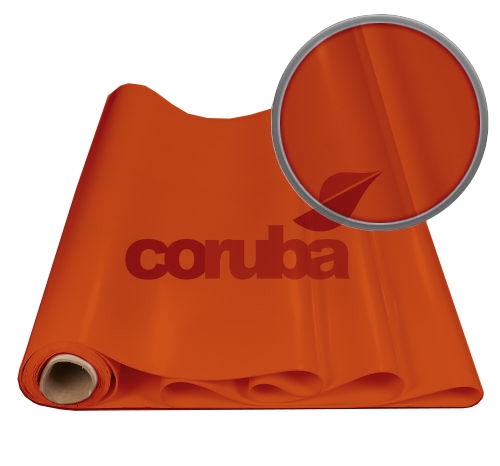

Coru1321 Orange SBR skirting Rubber 50° shore | 140mm3 Abrasion Resistance
- Meets ASTM D 2000 M2 AA510A13B13C12G21J1
- Ideal for skirting Rubber Liners
- Conveyor Skirting 50° Shore
From £113.46 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
Coru1321 Orange SBR skirting 50° shore ideally suitable as skirting rubber liner for conveyor belts
N.B. Available in plain or self-adhesive backed tape (SAB) alternatives. Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk.
Material Profile (see below):
- Thickness: 6mm, 10mm, 12mm, 15mm and 20mm
- Sheet Size: 1.4m wide in 10 and 20m rolls
- Finish: Smooth finish both sides
- Cutting: Standard press-tools
Other grades, colours and finishes are available – subject to minimum batch quantities.
|
Properties |
Test Method |
Values |
Test Method |
Values |
|
|
|
FPS Units |
|
Metric Units |
|
Specific Gravity |
DIN 53508 |
1.20±0.05 |
ASTM D297 |
1.20±0.05 |
|
Hardness |
DIN 53505 |
50 ± 5 Sh A |
ASTM D2240 |
50 ± 5 Sh A |
|
Tensile Strength (min) |
DIN 53504 |
1140 PSI |
ASTM D412 |
80 kg/cm2 |
|
Elongation at Break (min) |
DIN 53504 |
300% |
ASTM D412 |
300% |
|
Abrasion Resistance (max) |
DIN 53516 |
140 mm3 |
ASTM D5963 |
140 mm3 |
|
Compression Set (70ºC/24 hrs./25% compression) (max) |
DIN 53517 |
40% |
ASTM D395 METHOD B |
40% |
|
Tear Resistance (Angular) min |
DIN 53515 |
123 Lbs/Inch |
ASTM D624 |
22 Kg/cm |
|
Change in Properties After |
|
|
|
|
|
Heat Ageing For (72 hrs. AT 70 ºC) |
|
|
ASTM D573 |
|
|
— Hardness (Pts) |
|
+ 5 (Max) |
|
+ 5 (Max) |
|
— Tensile Strength (%) |
|
+ 10 / -25 |
|
+ 10 / -25 |
|
— Elongation at Break (%) |
|
+ 10 / -25 |
|
+ 10 / -25 |
|
Volume Swell: at 70ºC for 72 hrs |
|
|
ASTM D 471 |
|
|
In IRM Oil No.1 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
In IRM Oil No.2 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
In IRM Oil No.3 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
Chemical Resistance |
|
|
|
|
|
— Ozone |
|
FAIR |
ASTM D 1149 |
FAIR |
|
— Dilute Acids and Bases |
|
GOOD |
|
GOOD |
|
— Concentrated Acids and Bases |
|
FAIR |
|
FAIR |
|
— Oils |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
— Solvents |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
Temperature Range |
|
-30º to + 70 ºC |
|
-30º to + 70 ºC |
|
Colour |
|
BLACK |
|
BLACK |
|
