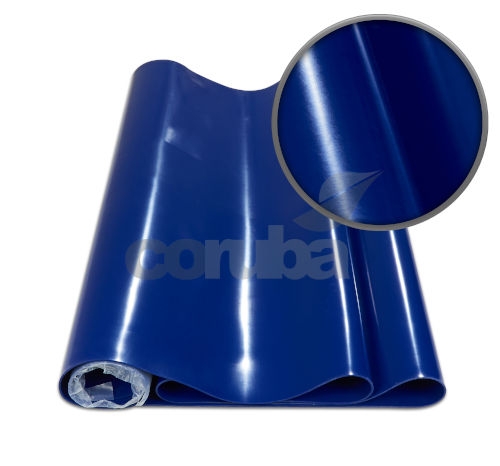

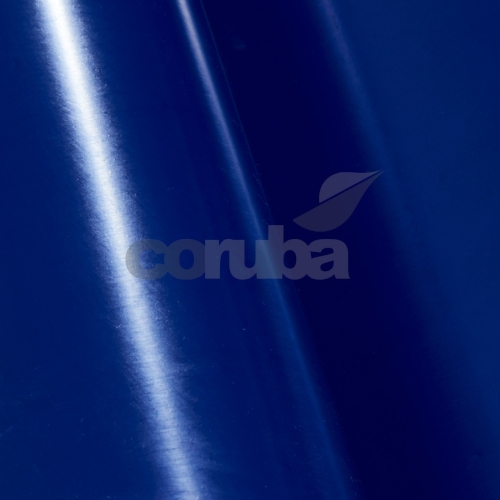

Blue Metal Detectable FDA Approved & EU1935/2004 Compliant Silicone Grade 60° Shore
- Approved to FDA 21 CFR 177.2600 – EU1935/2004 Compliant
- REACH, RoHS, PAH and CE compliant
- Metal Detectable Silicone: 60° Shore
From £65.51 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
Chemical Resistances
The Coru1442 Is a Blue Metal Detectable FDA approved 60 shore Silicone made from the highest quality for demanding applications with excellent heat and flame resistance.
With the risk of Silicone particles become more of a poignant concern in global production lines particularly in medical, pharmaceutical and food and drink applications a solution was required to stop Silicone particle contamination. The solution was a Metal Detectable Silicone that can easily be detected by metal detectors to prevent Silicone contamination, thus stopping any eroded particles entering the production line. Sensitive In-line metal detection systems are used to monitor production lines, if they detect any contaminants, the production process is quickly halted, contaminated products are quarantined, the particle source investigated, identified and rectified and the production line is resumed with minimal down time and minimal product waste. Metal Detectable Silicone has been seen as a global success and has been adopted as a safe, cost effective solution worldwide minimizing Silicone contamination and the subsequent risks associated with Silicone contamination.
N.B. Available in plain or self-adhesive backed tape (SAB) alternatives. Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk.
Material Profile (see below):
- Thickness: 1.5mm to 6mm
- Sheet Size: 1.2m wide in 5m and 10m rolls
- Finish: Smooth finish
- Cutting: Standard press-tools
This Product is REACH, RoHS, PAH and CE Compliant.
| PROPERTIES | TEST METHOD | VALUES FPS UNITS | TEST METHOD | VALUES METRIC UNITS |
| SPECIFIC GRAVITY | DIN 53508 | 1.30 | ASTM D297 | 1.30 |
| HARDNESS | DIN 53505 | 60 ± 5 SH A | ASTM D2240 | 60 ± 5 SH A |
| TENSILE STRENGTH ( MIN ) | DIN 53504 | 853 PSI | ASTM D412 | 60 KG/CM2 |
| ELONGATION AT BREAK ( MIN ) | DIN 53504 | 300% | ASTM D412 | 300% |
| COMPRESSION SET (70º C/24 HRS/25% SET) (MAX) | DIN 53517 | 45% | ASTM D395 METHOD B | 45% |
| TEAR RESISTANCE ( ANGULAR ) MIN | DIN 53515 | 95 LBS/INCH | ASTM D624 | 17 KG/CM |
| POLYMER CONTENT (%) | 100 | |||
| CHANGE IN PROPERTIES | ||||
| HEAT AGEING ( 72 HRS. AT 100 ºC ) | ASTM D573 | |||
| — HARDNESS (PTS) | + 1 (MAX) | + 1 (MAX) | ||
| — TENSILE STRENGTH (%) | ±5 | ±5 | ||
| — ELONGATION AT BREAK (%) | ±5 | ±5 | ||
| VOLUME SWELL : AT 70º C FOR 72 HRS/IN | ASTM D 471 | |||
| IRM OIL NO.1 | NA | NA | ||
| IRM OIL NO.2 | NA | NA | ||
| IRM OIL NO.3 | NA | NA | ||
| CHEMICAL RESISTANCE | ||||
| — OZONE | EXCELLENT | ASTM D 1149 | EXCELLENT | |
| — DILUTE ACIDS AND BASES | FAIR | FAIR | ||
| — CONCENTRATED ACIDS AND BASES | FAIR | FAIR | ||
| — OILS | FAIR | FAIR | ||
| — SOLVENTS | FAIR | FAIR | ||
| TEMPERATURE RANGE | -60 º TO + 200º C | -60 º TO + 200º C | ||
| COLOUR | RAL 5026 BLUE | RAL 5026 BLUE | ||
| POLYMER CONTENT (%) | 100 |
Extraction Data Test Results
Test Name: Determination of Amount of Extractives
Method : With reference to US FDA 21 CFR 177.2600
For use in contact with aqueous food:
| EXTRACTANTS | TEST CONDITIONS | RESULT
(MG/INCH²) |
REPORTING LIMIT
(MG/INCH²) |
PERMISSIBLE LIMIT
(MG/INCH²) |
| Distilled Water | Reflux Temperature for 7 Hours | ND | 0.1 | 20 |
| Succeeding 2 Hours of extraction | ND | 0.1 | 1 | |
| Comment | – – | PASS | – – | – – |
For use in contact with fatty food
| EXTRACTANTS | TEST CONDITIONS | RESULT
(MG/INCH²) |
REPORTING LIMIT
(MG/INCH²) |
PERMISSIBLE LIMIT
(MG/INCH²) |
| n-Hexane | Reflux Temperature for 7 Hours | ND | 0.1 | 175 |
| Succeeding 2 Hours of extraction | ND | 0.1 | 4 | |
| Comment | – – | PASS | – – | – – |
Notes:
- mg/inch² = milligram per square inch
- ND = Not Detected
- Test Condition has been provided by client
| PROPERTIES | TEST METHOD | VALUES FPS UNITS | TEST METHOD | VALUES METRIC UNITS |
| SPECIFIC GRAVITY | DIN 53508 | 1.30 | ASTM D297 | 1.30 |
| HARDNESS | DIN 53505 | 60 ± 5 SH A | ASTM D2240 | 60 ± 5 SH A |
| TENSILE STRENGTH ( MIN ) | DIN 53504 | 853 PSI | ASTM D412 | 60 KG/CM2 |
| ELONGATION AT BREAK ( MIN ) | DIN 53504 | 300% | ASTM D412 | 300% |
| COMPRESSION SET (70º C/24 HRS/25% SET) (MAX) | DIN 53517 | 45% | ASTM D395 METHOD B | 45% |
| TEAR RESISTANCE ( ANGULAR ) MIN | DIN 53515 | 95 LBS/INCH | ASTM D624 | 17 KG/CM |
| POLYMER CONTENT (%) | 100 | |||
| CHANGE IN PROPERTIES | ||||
| HEAT AGEING ( 72 HRS. AT 100 ºC ) | ASTM D573 | |||
| — HARDNESS (PTS) | + 1 (MAX) | + 1 (MAX) | ||
| — TENSILE STRENGTH (%) | ±5 | ±5 | ||
| — ELONGATION AT BREAK (%) | ±5 | ±5 | ||
| VOLUME SWELL : AT 70º C FOR 72 HRS/IN | ASTM D 471 | |||
| IRM OIL NO.1 | NA | NA | ||
| IRM OIL NO.2 | NA | NA | ||
| IRM OIL NO.3 | NA | NA | ||
| CHEMICAL RESISTANCE | ||||
| — OZONE | EXCELLENT | ASTM D 1149 | EXCELLENT | |
| — DILUTE ACIDS AND BASES | FAIR | FAIR | ||
| — CONCENTRATED ACIDS AND BASES | FAIR | FAIR | ||
| — OILS | FAIR | FAIR | ||
| — SOLVENTS | FAIR | FAIR | ||
| TEMPERATURE RANGE | -60 º TO + 200º C | -60 º TO + 200º C | ||
| COLOUR | RAL 5026 BLUE | RAL 5026 BLUE | ||
| POLYMER CONTENT (%) | 100 |
Extraction Data Test Results
Test Name: Determination of Amount of Extractives
Method : With reference to US FDA 21 CFR 177.2600
For use in contact with aqueous food:
| EXTRACTANTS | TEST CONDITIONS | RESULT
(MG/INCH²) |
REPORTING LIMIT
(MG/INCH²) |
PERMISSIBLE LIMIT
(MG/INCH²) |
| Distilled Water | Reflux Temperature for 7 Hours | ND | 0.1 | 20 |
| Succeeding 2 Hours of extraction | ND | 0.1 | 1 | |
| Comment | – – | PASS | – – | – – |
For use in contact with fatty food
| EXTRACTANTS | TEST CONDITIONS | RESULT
(MG/INCH²) |
REPORTING LIMIT
(MG/INCH²) |
PERMISSIBLE LIMIT
(MG/INCH²) |
| n-Hexane | Reflux Temperature for 7 Hours | ND | 0.1 | 175 |
| Succeeding 2 Hours of extraction | ND | 0.1 | 4 | |
| Comment | – – | PASS | – – | – – |
Notes:
- mg/inch² = milligram per square inch
- ND = Not Detected
- Test Condition has been provided by client
