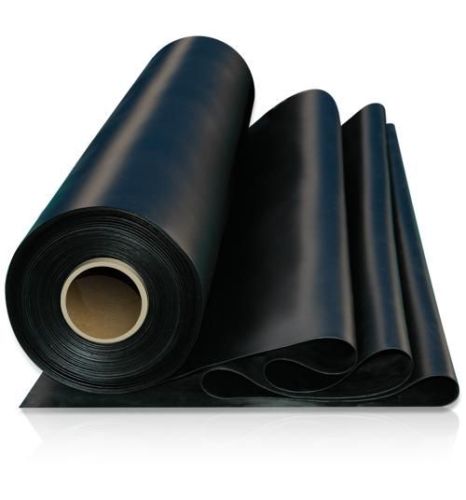

Black Neoprene Anti Static BS490 & Flame Retardant ISO 340 Sheet 60° shore
- Flame Resistant According to ISO 340
- Anti-Static Characteristics According to BS490
- REACH, RoHS, PAH and CE compliant
- High Grade Flame Retardant Neoprene: 60° Shore
- ATEX Compliant
From £33.70 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
Coruba are proud distributors of METROSEAL SM187.
SM187 – Black Anti Static (British Standard BS490 with 3 x 108 surface electrical resistance Ω maximum) and Flame Retardant to ISO 340 standard 60° shore.
N.B. Available in plain or self-adhesive backed tape (SAB) alternatives. Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk.
Material Profile (see below):
- Thickness: 1mm, 3mm, 6mm, 10mm
- Sheet Size: 1.4m wide in 10 and 20m rolls
- Cutting: Standard press-tools
Flame resistance (according to ISO 340)
– Flame persistence (after removing the burner)
– Flame persistence must be under 45 sec
– For each six group of test pieces and each single value under 15 sec
– The flame mustn’t reappear after an air draughtiness application
Antistatic characteristic (according to BS 490)
– Surface electrical resistance ( ), max
Other grades, colours and finishes are available – subject to minimum batch quantities.
|
Characteristics |
Values |
|
|
Specific Gravity |
1.20 |
|
|
Hardness (o Shore A) |
60 ± 5 |
|
|
Tensile Strength, (Kgf/cm2), min |
80 |
|
|
Elongation At Break, (%), min |
250 |
|
|
Maximum compression set after 24h at 70oC, (%) |
25 |
|
|
Flame resistance (according to ISO240) |
Flame persistence (after removing the burner) |
Max 45s |
|
The flame mustn’t reappear after an air draughtiness application |
Max 15 |
|
|
Antistatic characteristic (according to BS 490) Surface electrical resistance (Ω), max |
3 x 108 |
|
|
Temperature Range |
-30o to +100oC |
|
|
Compression Set (70oC for 22 hours), (%) |
25 |
|
|
Polymer Content |
Blend |
|
|
Characteristics |
Values |
|
|
Specific Gravity |
1.20 |
|
|
Hardness (o Shore A) |
60 ± 5 |
|
|
Tensile Strength, (Kgf/cm2), min |
80 |
|
|
Elongation At Break, (%), min |
250 |
|
|
Maximum compression set after 24h at 70oC, (%) |
25 |
|
|
Flame resistance (according to ISO240) |
Flame persistence (after removing the burner) |
Max 45s |
|
The flame mustn’t reappear after an air draughtiness application |
Max 15 |
|
|
Antistatic characteristic (according to BS 490) Surface electrical resistance (Ω), max |
3 x 108 |
|
|
Temperature Range |
-30o to +100oC |
|
|
Compression Set (70oC for 22 hours), (%) |
25 |
|
|
Polymer Content |
Blend |
|
