Black FDA Approved & EU1935/2004 Compliant Silicone 60° Shore
- Approved to FDA 21 CFR No: 177 – 2600, EU1935/2004 regulations and class V1 compliant.
- REACH, RoHS, PAH and CE compliant.
- High Quality Silicone: 60° Shore.
From £36.72 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
Chemical Resistances

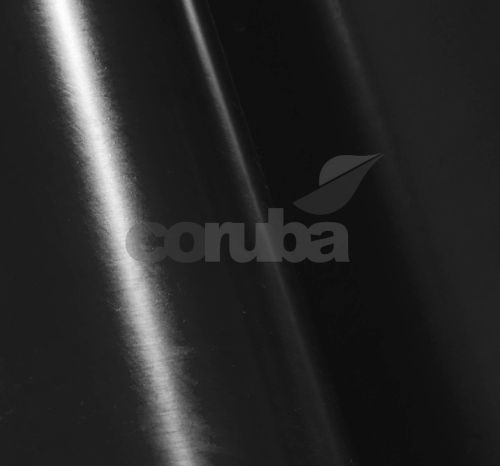

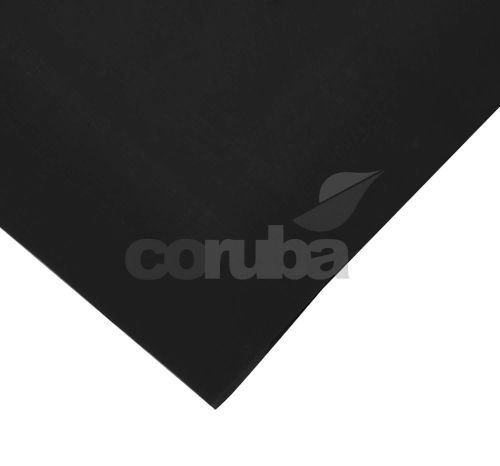

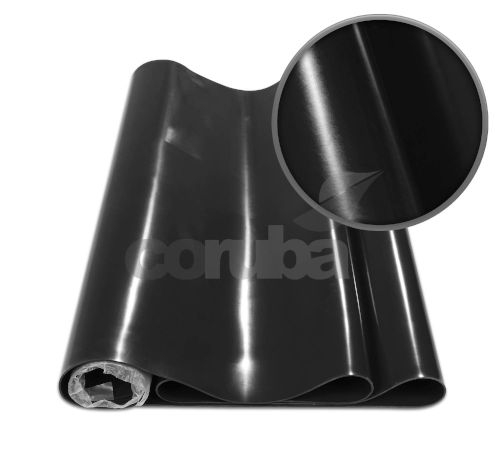

The Coru14204 Black Silicone Food & Drink Grade 60° shore is high quality sheeting for demanding applications with excellent heat and flame resistance together with very good aging and weathering characteristics and suitable for use with food and drink.
N.B. Available in plain or self-adhesive backed tape (SAB) alternatives. Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk.
Complies to US FDA 21 CFR177.2600. & EU 1935/2004 and USP Class VI Compliant.
Material Profile (see below):
- Thickness: 1.0mm to 6mm
- Sheet Size: 1.2m wide in 10m rolls
- Finish: Smooth finish
- Cutting: Standard press-tools
This Product is REACH, RoHS, PAH and CE Compliant.
Other grades, colours and finishes are available – subject to minimum batch quantities.
| PROPERTIES | TEST METHOD | VALUES FPS UNITS | TEST METHOD | VALUES METRIC UNITS |
| SPECIFIC GRAVITY | DIN 53508 | 1.16+±0.05 | ASTM D297 | 1.16±0.05 |
| HARDNESS | DIN 53505 | 60 | ASTM D2240 | 60 |
| TENSILE STRENGTH (KG/CM2) | DIN 53504 | 853 PSI | ASTM D412 | 80 |
| ELONGATION AT BREAK ( MIN ) | DIN 53504 | 300% | ASTM D412 | 300% |
| COMPRESSION SET (150º C/24 HRS/25% SET) (MAX) | DIN ISO 815-1 | 40% | ASTM D395 METHOD B | 40% |
| TEAR RESISTANCE ( ANGULAR ) MIN | DIN 53515 | 112 LBS/INCH | ASTM D624 | 20 KG/CM |
| POLYMER CONTENT: | 100% | |||
| CHANGE IN PROPERTIES | ||||
| HEAT AGEING ( 72 HRS. AT 100 ºC ) | ASTM D573 | |||
| — HARDNESS (PTS) | + 3 (MAX) | + 3 (MAX) | ||
| — TENSILE STRENGTH (%) | ±5 | ±5 | ||
| — ELONGATION AT BREAK (%) | ±5 | ±5 | ||
| VOLUME SWELL : AT 70º C FOR 72 HRS/IN | ASTM D 471 | |||
| ASTM OIL NO.1 | + 5% | + 5% | ||
| ASTM OIL NO.2 | + 7% | + 7% | ||
| ASTM OIL NO.3 | + 25% | + 25% | ||
| CHEMICAL RESISTANCE | ||||
| — OZONE | EXCELLENT | ASTM D 1149 | EXCELLENT | |
| — DILUTE ACIDS AND BASES | EXCELLENT | EXCELLENT | ||
| — CONCENTRATED ACIDS AND BASES | EXCELLENT | EXCELLENT | ||
| — OILS | GOOD | GOOD | ||
| — SOLVENTS | FAIR | FAIR | ||
| TEMPERATURE RANGE | -60 º TO + 225º C | -60 º TO + 225º C | ||
| COLOUR | BLACK | |||
US-FDA test as per 21.CFR.177.2600
| SR. NO. | NET CHLOROFORM SOLUBLE EXTRACTIVES USING | RESULT | UNIT | LIMITS AS PER STANDARD | TEST METHOD |
| Total Extractives at Reflux Temperatures for 7 hrs. Using | |||||
| 1 | Distilled Water | 2.8 | mg/inch2 | 20.0 | As per USFDA 21.CFR.176.2600 |
| 2 | n-Hexane | 22.4 | 175.0 | ||
| Total Extractives at Reflux Temperatures for 2 hrs. Using | |||||
| 3 | Distilled Water | 0.8 | mg/inch2 | 1.0 | |
| 4 | n-Hexane | 0.8 | 4.0 | ||
Note: Detection Limit for the method is 0.5 mg/inch2.
