*Terms and conditions apply
If you would like to discuss this product, or you require a sample, please call 01702 560194. Alternatively, you can use our contact form.
Please note: All cut material is non-returnable unless faulty as these are non-sellable and have been cut to specific requirements.

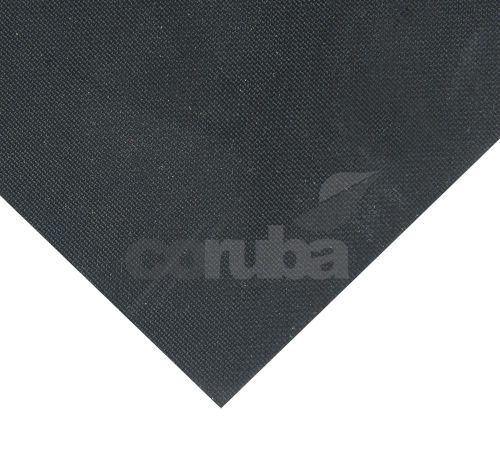

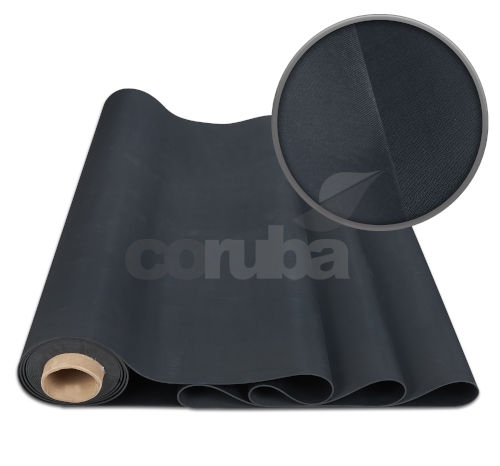

Black EPDM (100% Content) High Acid Resistant Rubber to ICI M228 Spec 80° shore
- REACH, RoHS, PAH and CE compliant
- Certified to ICI M228
- High Acid Resistance
- EPDM Rubber: 80° Shore
From £64.07 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
Chemical Resistances
Coru1458 Black EPDM (100% content) 80° shore. Meeting ICI M228.
High Acid Resistance (Please call to confirm suitability)
N.B. Available in plain or self-adhesive backed tape (SAB) alternatives. Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk.
Material Profile (See Below):
- Thickness: 1mm to 10mm (10mm + Manufactured to order)
- Sheet Size: 1.6m wide in 5m, 10m rolls
- Finish: Cloth / Cloth finish
- Cutting: Standard press-tools
Other grades, colours and finishes are available – subject to minimum batch quantities.
|
PROPERTIES |
TEST METHOD |
VALUES FPS UNITS |
TEST METHOD |
VALUES METRIC UNITS |
|
SPECIFIC GRAVITY |
ASTM D297 |
1.38 ± 0.05 |
DIN 53508 |
1.38 ± 0.05 |
|
HARDNESS |
ASTM D2240 |
80 ± 5 SH A |
DIN 53505 |
80 ± 5 SH A |
|
TENSILE STRENGTH ( MIN ) |
ASTM D412 |
1015 PSI |
DIN 53504 |
70 KG/CM2 |
|
ELONGATION AT BREAK ( MIN ) |
ASTM D412 |
250% |
DIN 53504 |
250% |
|
COMPRESSION SET (70ºC/24 HRS/25% SET) (MAX) |
ASTM D395 METHOD B |
35% |
DIN 53517 |
35% |
|
TEAR RESISTANCE ( ANGULAR ) MIN |
ASTM D624 |
110 LBS/INCH |
DIN 53515 |
20 KG/CM |
|
CHANGE IN PROPERTIES |
|
|
|
|
|
HEAT AGEING ( 72 HRS. AT 70ºC ) |
ASTM D573 |
|
|
|
|
— HARDNESS (PTS) |
|
+ 5 (MAX) |
|
+ 5 (MAX) |
|
— TENSILE STRENGTH (%) |
|
+ 10 / – 10 |
|
+ 10 / – 10 |
|
— ELONGATION AT BREAK (%) |
|
+ 10 / – 10 |
|
+ 10 / – 10 |
|
VOLUME SWELL : AT 70ºC FOR 72 HRS/IN |
ASTM D 471 |
|
|
|
|
ASTM OIL NO.1 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
ASTM OIL NO.2 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
ASTM OIL NO.3 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
POLYMER CONTENT (EPDM) |
|
100% |
|
100% |
|
CARBON CONTENT |
|
30% |
|
30% |
|
CHEMICAL RESISTANCE |
|
|
|
|
|
— OZONE |
ASTM D 1149 |
EXCELLENT |
|
EXCELLENT |
|
— DILUTE ACIDS AND BASES |
|
EXCELLENT |
|
EXCELLENT |
|
— CONCENTRATED ACIDS AND BASES |
|
EXCELLENT |
|
EXCELLENT |
|
— OILS |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
— SOLVENTS |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
TEMPERATURE RANGE |
|
-30º TO + 130ºC |
|
-30º TO + 130ºC |
|
COLOUR |
|
BLACK |
||
|
