If you would like to discuss this product, or you require a sample, please call 01702 560194. Alternatively, you can use our contact form.
Please note: All cut material is non-returnable unless faulty as these are non-sellable and have been cut to specific requirements.

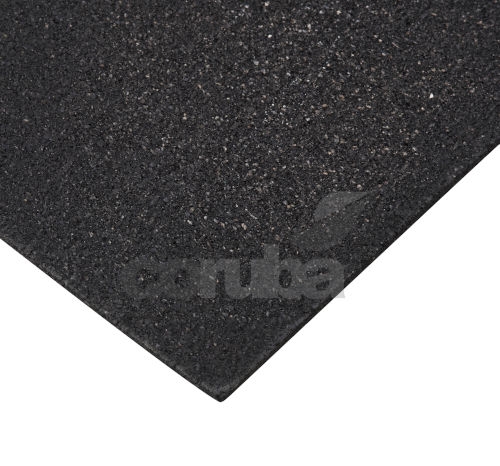

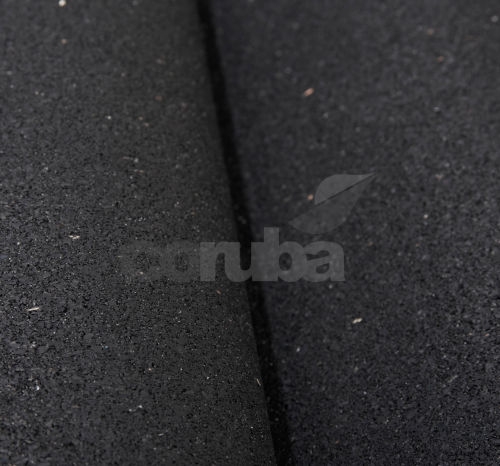

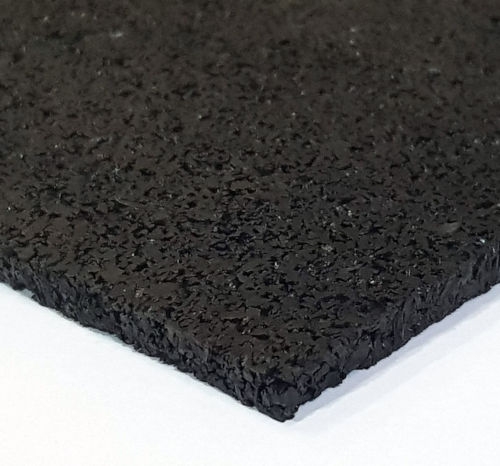

Black Crumb Rubber 55° shore
- Heat Loss and Sound Reduction
- Conforms to Part L of Building Regulations
- Fire Classification EN13501-1
- Manufactured from 95% recycled tyres (selected from top 5% in Europe)
- Fire Rated to EN13501-1
- Heat Loss Limiting
- Footfall Sound insulation EN ISO 140-8
- Great sound insulation as flooring underlay
- Tough and durable rubber
- Asbestos, Formaldehyde, Halogen and Heavy Metal Free
- Eco Friendly including AgBB Scheme and Blue Angel
- Solvent Free- non damaging to the Ozone
- Fully Recyclable at end of life (estimated 30 years)
- Granule Crumb Rubber: 55° Shore
From £15.25 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
Coru595 Black Crumb Rubber Insulation/Protection matting is a tough and durable rubber crumb ideal for use as a standalone floor or as a flooring underlay, including roof walkways to not only reduce footfall sound but also heat penetration (solar gain).
Fire rated and approved for the conservation of fuel and power under part L of building regulations you can install this economical product with complete confidence.
This product is also ideal for protecting walls and floors in construction but is also extensively used in the equine and other animal setting.
Available in standard roll sizes or cut to your specific size and shape requirements.
Other grades, including coloured fleck available on application.
N.B. Coruba Matting and Sheeting can be supplied plain or with self-adhesive backed tape (SAB). Rubber Strip to bespoke sizes are available along with customised sheets/gaskets. Please email your enquiry details to sales@coruba.co.uk.
|
Properties |
Values |
|
Material |
High Grade SBR rubber granulate bonded with polyurethane |
|
Application |
Impact sound insulation- acoustic underlay for flooring applications |
|
Density – EN ISO 845 |
730 Kg/m +/- 5% Weight/m2 7.3kg |
|
Thickness |
5-10mm ± 0.3mm |
|
Dimensions |
10m x 1.25m or cut sheets/parts |
|
Dimension Tolerance DIN 7715 – 2 M4 |
± 1.5% |
|
Thickness |
3-6mm ±0.3mm > 6mm ± 0.4mm others upon request |
|
Tensile Strength DIN EN ISO 1798 |
>0.70Nmm² at 10mm |
|
Elongation at Break EN ISO 1798 |
>65% @ 10MM |
|
Footfall Sound Insulation EN ISO 140-8 |
21db at 3 and 5mm, under 7mm standard laminate flooring |
|
Dynamic Stiffness EN 29052-1 Measurement Executed in Deviation to Norm EN 29052/1- Without applying plaster on the test piece |
77Mn/m³ in 3mm 70MN/M³ in 4mm 63MN/m³ in 5mm |
|
Stress- Strain Characteristics in Compression EN ISO 3386-2 |
at 10mm ( 40x40x10mm) C24 ca.647 kPa 0.65Nmm² C40 ca.2240 kPa 2.24Nmm² C50 ca.5500 kPa 5.50Nmm²
|
|
Load Deformation (Adapted from DIN EN ISO 3386-2) |
Sample:40 x 40 x 10mm 10% ca 145 kPa 15% ca 235 kPa 20% ca 360 kPa |
|
Fire Classification EN 13501-1 |
E fl or equivalent to BS (DIN 4102) |
|
Temperature Stability |
-30 to +100°C |
|
Date of Issue |
10/2018 |
|
