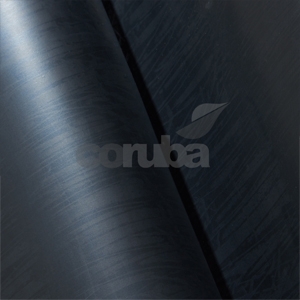

Black 100% High Grade EPDM Rubber 60° shore – Antistatic ASTM D257
- Meets ASTM D 2000 M2 DA608A26B36C32G21
- REACH, RoHS, PAH and CE compliant
- Suitable for us in applications where good weather and ozone resistance is required
- High Grade EPDM Rubber: 60° Shore
- Anti-Static: ASTM D257 105 to 109
From £24.17 Excl. VAT
You save (%)
This product is available for bespoke manufacturing, please choose an option below:
Chemical Resistances
Coru1456 Black 100% High Grade EPDM Rubber 60° shore is a High Grade EPDM suitable for use in applications where good weather and ozone resistance is required, also suitable for some mineral oils.
N.B. Available in plain or self-adhesive backed tape (SAB) alternatives. Bespoke sheets and gaskets are available, as well as customised rubber strips. Email your enquiries to sales@coruba.co.uk.
The above sheeting is manufactured from top quality virgin materials and ingredients meeting high standard of performance.
Material Profile (see below):
- Thickness: 1mm to 20mm

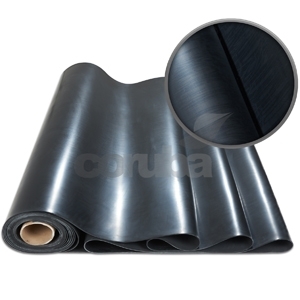

- Sheet Size: 1.4m wide in 10m rolls
- Finish: Smooth finish
- Cutting: Standard press-tools
This Product is REACH, RoHS, PAH and CE Compliant.
|
PROPERTIES |
TEST METHOD |
VALUES FPS UNITS |
TEST METHOD |
VALUES METRIC UNITS |
|
SPECIFIC GRAVITY |
ASTM D297 |
1.15 |
DIN 53508 |
1.15 |
|
HARDNESS |
ASTM D2240 |
60 ± 5 SH A |
DIN 53505 |
60 ± 5 SH A |
|
TENSILE STRENGTH ( MIN ) |
ASTM D412 |
1425 PSI |
DIN 53504 |
100 KG/CM2 |
|
ELONGATION AT BREAK ( MIN ) |
ASTM D412 |
300% |
DIN 53504 |
300% |
|
COMPRESSION SET (70ºC/24 HRS/25% SET) (MAX) |
ASTM D395 METHOD B |
30% |
DIN 53517 |
30% |
|
TEAR RESISTANCE ( ANGULAR ) MIN |
ASTM D624 |
168 LBS/INCH |
DIN 53515 |
30 KG/CM |
|
ANTISTATIC CHARACTERISTIC |
ASTM D257 |
105 to 109 |
ASTM D257 |
105 to 109 |
|
CHANGE IN PROPERTIES |
|
|
|
|
|
HEAT AGEING ( 72 HRS. AT 70ºC ) |
ASTM D573 |
|
|
|
|
— HARDNESS (PTS) |
|
+ 3 (MAX) |
|
+ 3 (MAX) |
|
— TENSILE STRENGTH (%) |
|
+ 10 / – 10 |
|
+ 10 / – 10 |
|
— ELONGATION AT BREAK (%) |
|
+ 10 / – 10 |
|
+ 10 / – 10 |
|
VOLUME SWELL : AT 70ºC FOR 72 HRS/IN |
ASTM D 471 |
|
|
|
|
ASTM OIL NO.1 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
ASTM OIL NO.2 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
ASTM OIL NO.3 |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
POLYMER CONTENT (EPDM) |
|
100% |
|
100% |
|
CHEMICAL RESISTANCE |
|
|
|
|
|
— OZONE |
ASTM D 1149 |
EXCELLENT |
|
EXCELLENT |
|
— DILUTE ACIDS AND BASES |
|
EXCELLENT |
|
EXCELLENT |
|
— CONCENTRATED ACIDS AND BASES |
|
EXCELLENT |
|
EXCELLENT |
|
— OILS |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
— SOLVENTS |
|
NOT RECOMMENDED |
|
NOT RECOMMENDED |
|
TEMPERATURE RANGE |
|
-30ºTO + 130ºC |
|
-30ºTO + 130ºC |
|
COLOUR |
|
BLACK |
||
|
