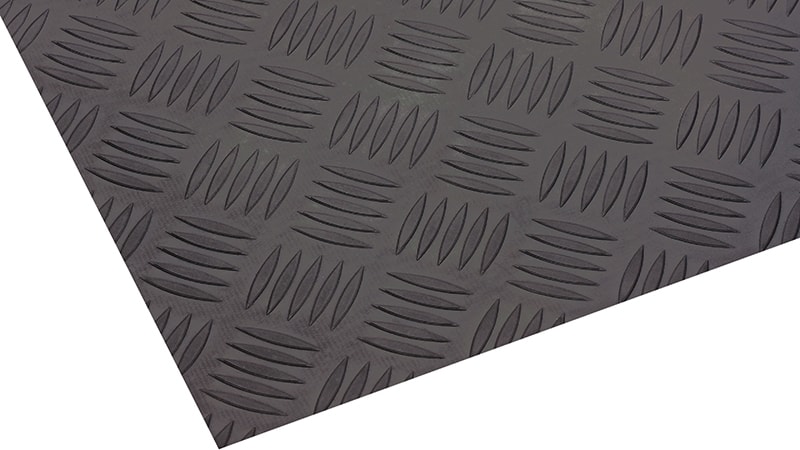

5 Bar Diamond Checker Plate Premium Rubber Matting
- REACH RoHS, PAH and CE Compliant
- PAH compliant means low Odour unlike cheaper grades
- Non-staining & non-discolouring
- Excellent traction & easily cleaned
- Exceptional wear & grip characteristics
- Cut lengths & bespoke parts to order
- Available in other rubber compounds, see description tab
- Slip Resistance: 77.9 N
From £28.29 Excl. VAT
This product is available for bespoke manufacturing, please choose an option below:
| THICKNESS | SPECIFIC GRAVITY | HARDNESS | TENSILE STRENGTH | ELONGATION ON BREAK | TEAR STRENGTH | APPLICATION | POLYMER | SLIP RESISTANCE |
| MM | Gm/cm3 | SHORE A | Kg/cm2(min) | % | Kg/cm2 | |||
| 3 | 1.5 | 70+/-5 | 35 | 250 | 18 | General Purpose | NR/SBR | 77.9 N |
This product is also available in the below, application specific, compounds upon request.
| THICKNESS | SPECIFIC GRAVITY | HARDNESS | TENSILE STRENGTH | ELONGATION ON BREAK | TEAR STRENGTH | APPLICATION | POLYMER |
| MM | Gm/cm3 | SHORE A | Kg/cm2(min) | % | Kg/cm2 | ||
| 3 | 1.4 | 70+/-5 | 50 | 300 | 22 | Oil Resistant | NITRILE |
| 5 | 1.25 | 60+/-5 | 125 | 350 | 25 | High Traffic areas | NR/SBR |
| 3 | 1.3 | 65+/-5 | 80 | 250 | 25 | Outdoor use | EPDM |
| 6.5 | 1.55 | 70+/-5 | 50 | 250 | 30 | Electrical Insulation | NR/SBR |
| 3.5 | 1.5 | 75 +/-5 | 60 | 250 | 30 | Electrical Insulation | NR/SBR |
| 3 | 1.55 | 70+/-5 | 50 | 250 | 20 | Fire Resistant | CHLOROPRENE |
| Standard Dimensions | Colours | ||||||
| Standard width: 1.5m
Other widths available to special order or slit upon request, maximum width: 1.6m |
Standard: Black Available upon request: Red, Blue, Green, Grey |
||||||
|
Standard length: 10m Special order: 15m, 20m |
|||||||
| THICKNESS | SPECIFIC GRAVITY | HARDNESS | TENSILE STRENGTH | ELONGATION ON BREAK | TEAR STRENGTH | APPLICATION | POLYMER | SLIP RESISTANCE |
| MM | Gm/cm3 | SHORE A | Kg/cm2(min) | % | Kg/cm2 | |||
| 3 | 1.5 | 70+/-5 | 35 | 250 | 18 | General Purpose | NR/SBR | 77.9 N |
This product is also available in the below, application specific, compounds upon request.
| THICKNESS | SPECIFIC GRAVITY | HARDNESS | TENSILE STRENGTH | ELONGATION ON BREAK | TEAR STRENGTH | APPLICATION | POLYMER |
| MM | Gm/cm3 | SHORE A | Kg/cm2(min) | % | Kg/cm2 | ||
| 3 | 1.4 | 70+/-5 | 50 | 300 | 22 | Oil Resistant | NITRILE |
| 5 | 1.25 | 60+/-5 | 125 | 350 | 25 | High Traffic areas | NR/SBR |
| 3 | 1.3 | 65+/-5 | 80 | 250 | 25 | Outdoor use | EPDM |
| 6.5 | 1.55 | 70+/-5 | 50 | 250 | 30 | Electrical Insulation | NR/SBR |
| 3.5 | 1.5 | 75 +/-5 | 60 | 250 | 30 | Electrical Insulation | NR/SBR |
| 3 | 1.55 | 70+/-5 | 50 | 250 | 20 | Fire Resistant | CHLOROPRENE |
| Standard Dimensions | Colours | ||||||
| Standard width: 1.5m
Other widths available to special order or slit upon request, maximum width: 1.6m |
Standard: Black Available upon request: Red, Blue, Green, Grey |
||||||
|
Standard length: 10m Special order: 15m, 20m |
|||||||
