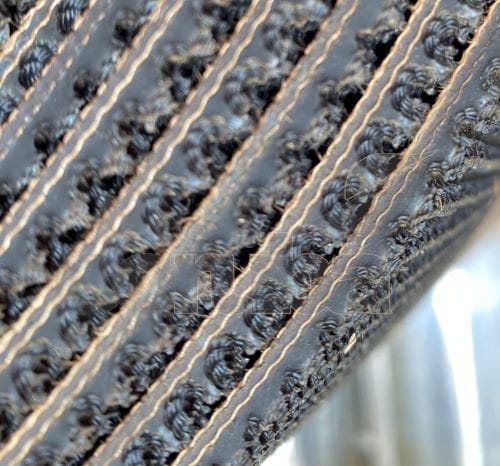

2 Ply 6mm EP160/2 3+0 DIN Z Rough Top Conveyor
- 2 Ply Belt
- 6mm Thick
- 160N/mm Tensile Strength
- Manufactured to DIN Z
- No minimum or maximum length
Call for Price
2 Ply EP160/2 – 3 + 0 DIN Z Conveyor belting from Coruba has 2 Polyester Fabric Reinforcements with a tensile strength of 160 N/mm. This belt has a 3mm rough pattern rubber top, manufactured to International standard DIN Z.
The Coruba 2 Ply EP160/2 Din Z is a grip top conveyor belt designed for carrying goods such as bags, boxes, paper, cartons and other lightweight items. The conveyor belt is made using a rough mesh pattern on the top cover which allows for impact absorption and good cushioning properties.
The grip top pattern is commonly used where smooth surface conveyor belts are not of use. The rough mesh pattern is used to create more friction between the goods, keeping them from slipping, especially on inclines. This reduces slide back and, in turn, damage to the goods.
Available in the following widths: 1.5m, 1.2m, 0.75m, 0.6m
|
Properties |
Values |
|
Belt Type |
EP160/2 |
|
Grade (DIN) |
Z |
|
Number of Plies |
2 |
|
Tensile Strength (Kg/cm2) |
150 |
|
Covers Top & Bottom (mm) |
3 + 0 |
|
Edge Details |
Cut |
|
Standard Width (mm) |
1200/1500 |
|
Thickness (mm) |
6.0 |
|
Abrasion Resistance |
250mm³ |
|
Elongation |
400% |
|
Properties |
Values |
|
Belt Type |
EP160/2 |
|
Grade (DIN) |
Z |
|
Number of Plies |
2 |
|
Tensile Strength (Kg/cm2) |
150 |
|
Covers Top & Bottom (mm) |
3 + 0 |
|
Edge Details |
Cut |
|
Standard Width (mm) |
1200/1500 |
|
Thickness (mm) |
6.0 |
|
Abrasion Resistance |
250mm³ |
|
Elongation |
400% |
