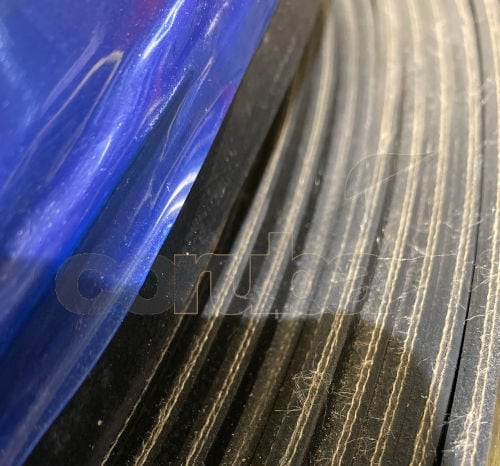

2 PLY 5.5mm Thick EP250/2
- 2 Ply Belt
- 5.5mm Thick
- 200N/mm Tensile Strength
- Manufactured to DIN Y
- No minimum or maximum length
Call for Price
2 Ply EP250/2 – 2 + 1 DIN Y Conveyor belting from Coruba has 2 Polyester Fabric Reinforcements with a tensile strength of 200 N/mm. This belt has a 2mm hard wearing rubber top and a 1mm Bottom cover, manufactured to International standard DIN Y.
Available in the following widths: 1.5m, 1.2m, 0.75m, 0.6m
|
Properties |
Values |
|
Carcass |
|
|
The carcass is built up of 2 fabrics of polyester warp and polyamide weft: |
|
|
Tensile Strength for 50 x 200mm |
1500 400 |
|
Adhesion between plies [N/mm]: |
5 |
|
Thickness [mm]: |
2 |
|
Elongation at 10% TS nom [&]: |
MAX 1.5 |
|
Covers: |
|
|
Top cover thickness [mm]: |
2 |
|
Heat resistant, anti-static as per ISO284, SBR: |
|
|
Bottom cover thickness [mm]: |
1 |
|
Minimum adhesion between cover and carcass [N/mm]: |
5 |
|
Top: |
4.5 |
|
Bottom: |
3.5 |
|
Technical data of rubber covers: |
|
|
Tensile strength in accordance to SR ISO 37 |
200 kgf/cm² |
|
Elongation at break [%]: to SR ISO 37 |
400% |
|
Abrasion resistance [mm³]: |
150 |
|
Ozone resistance ( 50 pphm: elongation 15%/ |
No Cracks |
|
Surface electrical resistance in accordance with |
3 x 10⁸ |
|
Resistance to accelerated ageing (168hr @ |
+/- 25% 25% |
|
Max abrasion resistance [mm³]: |
150 |
|
Hardness, ±5º [ºShore A]: |
65±5 |
|
Belt characteristics: |
|
|
Weight per metre [kg/m]: |
9.38 |
|
Total thickness [mm]: |
5 |
|
